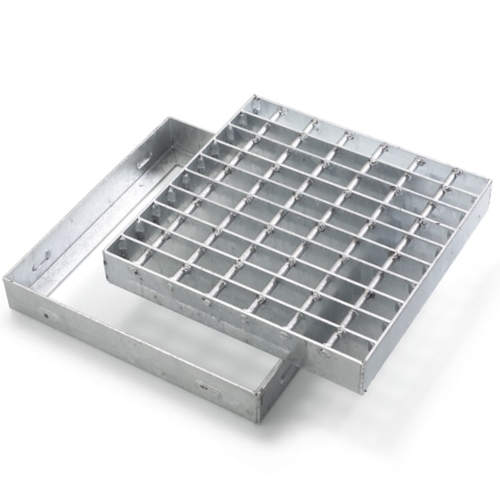

Electro-Forged Gratings are made of resistance-welding process to create a Rigid Finish to suite the corresponding Environment. The process of manufacturing is done where the Bearing Bars is Resistance-welded at the contact point with the cross bars under a combination of high heat and pressure which is fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for comfortable walking.
Electro-Forged Gratings type is most commonly used compared to all other grating types due to its strength, Durability, cost efficient production and ease of installation. Commonly used in most general Industrial plants as well as Architectural buildings, it has wide applications as Pedestrian Traffic, platforms, safety barriers, drainage covers and ventilation grates Etc
Load Bar depth - 25mm - 125mm
Load bar thickness - 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm & 10mm
Load bar type - Plain or serrated
Cross Bar Size - Twisted square bar 6mm, 8mm & 10mm
Pitch / Mesh - 30x100mm, 30x50mm, 41x100mm, 41x50mm, 34x38mm, 35x75mm & 35x100mm
Finish - Black Self colour / Painted / Hot Dip Galvanized
