Cable Tray

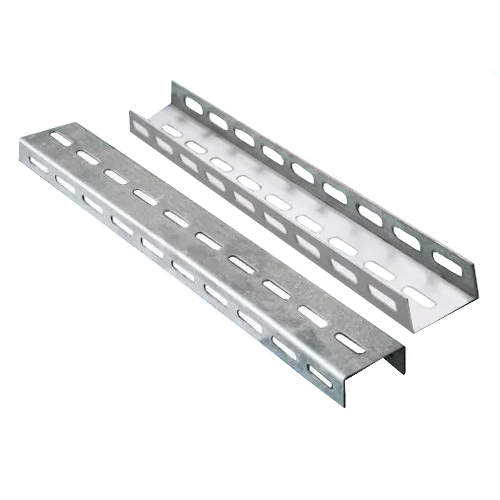

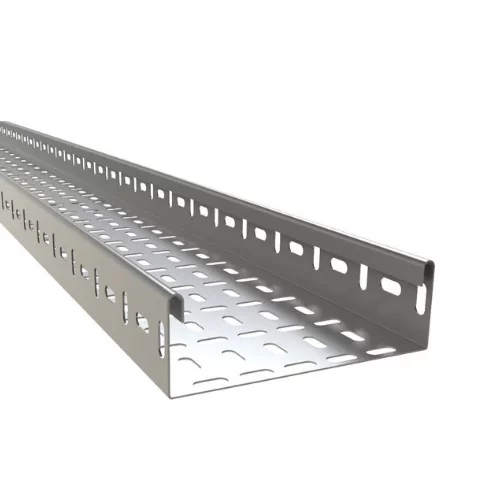

Perforated Cable Tray

• Moderate ventilation with added cable support advantage
• Thickness available 1.6mm, 2.0mm, 2.5mm, 3.0mm.
• Standard depths of 25, 40, 50, 75, 100mm.
• Standard lengths of 2.5/3.0 Mtrs.
• Covers for Perforated Cable Trays shall be Pregalvanised, Powder Coated (Stainless Steel and Aluminum also available).

Finish

• Hot Dip Galvanised
• Pregalvanised
• Powder Coated
• Stainless Steel

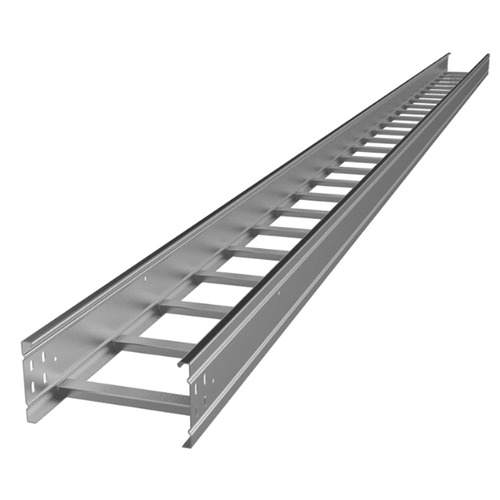

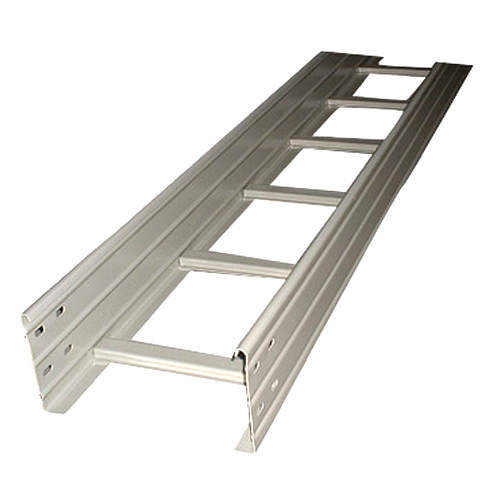

Ladder Type Cable Tray

Ladder Type Cable Trays that are made from the finest mild steel. This is used in various industries for distribution of power throughout the premises. These cables have uniform distance between them and consist of two longitudinal side rails or rungs, which are welded to the side rails or bolted in some cases. This type of cable tray provides maximum ventilation to heat producing cable such as power cables.

Ladder Type Cable Tray: Features

• Ladder Tray shall be sent in knocked down condition to be assembled at site by user.
• Maximum strength for long span applications
• Thickness available 1.6, 2.0, 2.5, 3.0mm
• Standard length of 2.5 Meters.
• Rung spacing of 250mm.
• Material for covers and cover clamps are Pregalvanised and Powder Coated (Stainless Steel and Aluminum available on request)

Stainless Steel Type Cable Tray

Stainless steel cable trays are made of 304, 316 grade stainless steel, which are designed into channel style, ladder style, perforated style. Stainless steel cable trays have sturdy structure, resist rust and they are specified for cable containment and cable support in oil, gas, petroleum, offshore, marine and a wide range of applications.

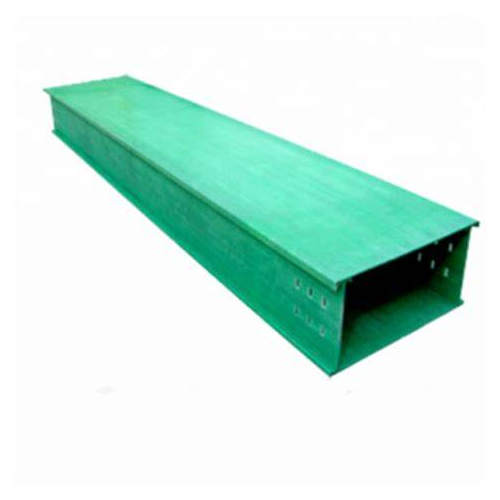

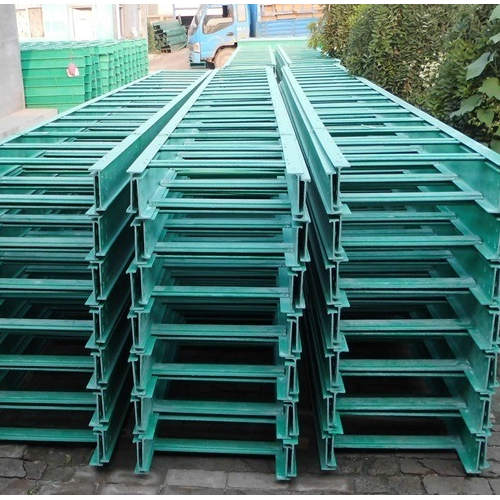

FRP Cable Tray

FRP cable tray is a shortened form of fiberglass reinforced plastic cable tray. It is also called GRP cable tray (glass reinforced plastic cable tray). FRP cable tray is formed through fiberglass pultrusion and continuous mechanized production process. According to the shape, FRP cable trays can be sorted into ladder type cable trays, channel type cable trays, perforated cable trays and large span cable trays. FRP cable trays are lighter than common steel cable trays. They have good corrosion-resistant and fire retardant properties so that they are mainly used to support insulated electric cables for power distribution in chemical industries, communications industries, oil and gas industries, metallurgy industries, etc.

Features

• Corrosion resistant. FRP material has good corrosion resistant property and makes it desirable for severely corrosive environment.
• Resistant to UV, electricity, salt water and chemicals.
• Endure high temperature and fast disperse heat.
• High strength and rigidity. FRP cable trays are strong enough to withstand high load bearing capacity of cables.
• FRP cable trays with covers protect cables from falling objects, dust and water.
• Dimensional stability without shrinking and swelling.
• Lighter and easier to work. FRP cable trays are 40% lighter than stainless steel cable trays. They are easily cut and installed with fasteners.
• Versatile structure. FRP cable trays have versatile structures such as ladder type cable trays, channel cable trays, perforated cable trays, large span cable trays.
• Available in many colors such as green, red, gray, etc.
• Long service life than traditional building materials.
• Low maintenance.

Applications

FRP cable trays are usually installed on the inside or outside wall of computer server room, chemical and purification plants, oil and gas industries, communication company to support computer cables, controlling cables.
